- 9,1(W) x 19,5(D) x 18,9(H) inch
- 230(W) x 496(D) x 480(H) mm
Analytics - Intelligence - Hybrid DVR!
- Mix & Match 16 Intelligent Channels
- Total of 150 Hybrid CCTV security cameras
- Analytics on all channels
- 4xHDMI – 100 channels display for video matrix
- OnVif, H264, Mjpeg full support
- 3x 1Gb/s Ethernet connection support
- Redundant SSD/HDD for OS/System
- Redundant SSD/HDD for Facial & licence plate Recognition DataBase
- Easy access to 4x3Tb HDD for video recording: Between 30 to 90 days recording
- Watercooled: No Heat Dissipation and built for sustained performance
- Unlockable to support 3rd party applications under warranty
- Installation, configuration & deployment included
- 1 years warranty on-site included (3 or 5 years option)
- Webserver for Mobile devices
|
||||||||||||
| Click to view full image |

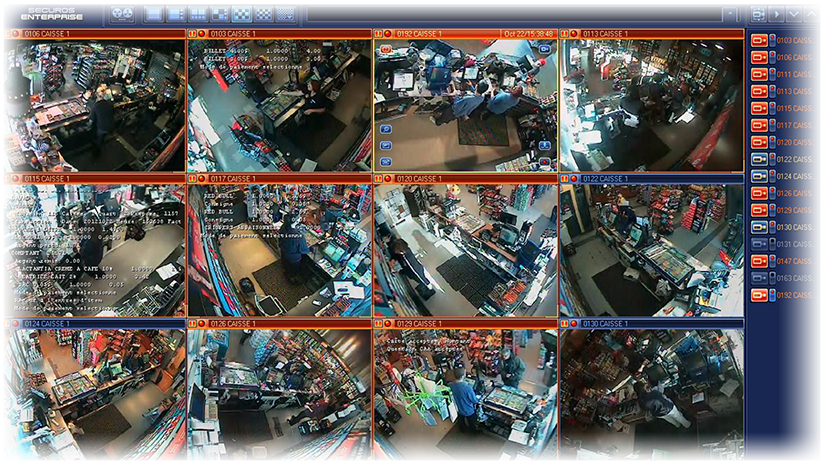

VIDEO MANAGEMENT
DEVICE MANAGEMENT
SMART SEARCH CAPABILITIES
|
EVENT / REACTION MANAGEMENT
COMPREHENSIVE VIDEO ANALYTICS SUITE
ADVANCED CONFIGURATION
|
|
Eagle Target
|
|
Video surveillance IADVR security systems pass a rigorous testing program during development, undergoing extreme performance benchmarks. These tests result in completely reliable systems that are ready for intense daily computing and heavy duty usage with the utmost stability. |
|
|
All surveillance system run on Windows or Linux and fully support:
* Visit manufacturer site for technical specifications |

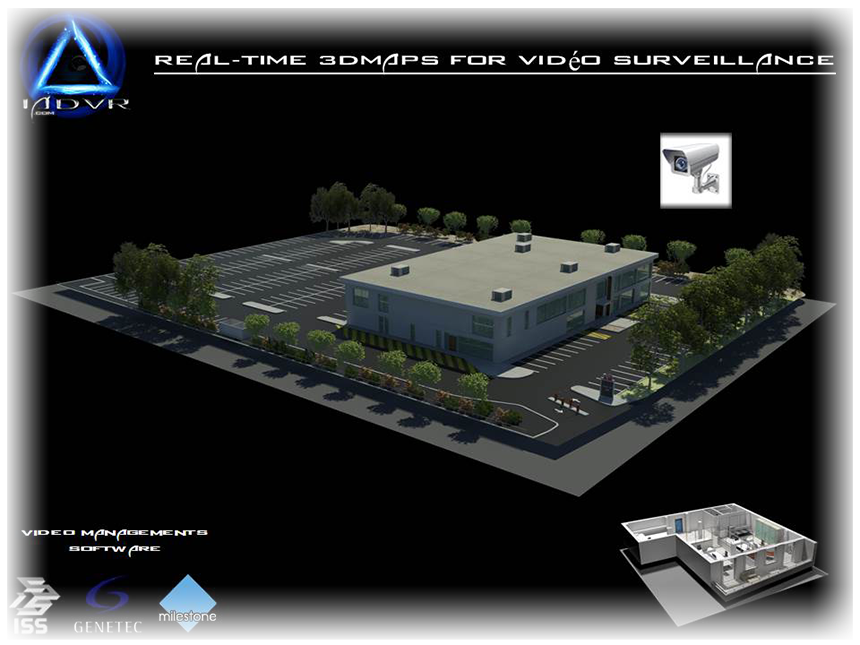

3D Real-Time Electronic maps 3D Orion is a software developed to provide a simple and consistent interface to exploit the potential of all types of devices and thus get rid of a specific site or manufacturer. While the user is accustoming with an intuitive ergonomics, 3D Orion plays an oversight role in keeping track of all actions and ensuring that the user has permission to make certain operations. |
|
A new "Machine to men" Interface We know that learning to use a software is an expensive operation. That is why 3D Orion benefits from our experience in terms of simplicity and accessibility. "Orion 3D" shows the operated site as a plan in 3 dimensions across which are positioned controlled devices. When possible, Orion 3D can also display one or more video cameras coming from the site or from a recorder. In this case, the devices can also be controlled by thanks to your mouse directly in the video window. |
NonStop Desktop

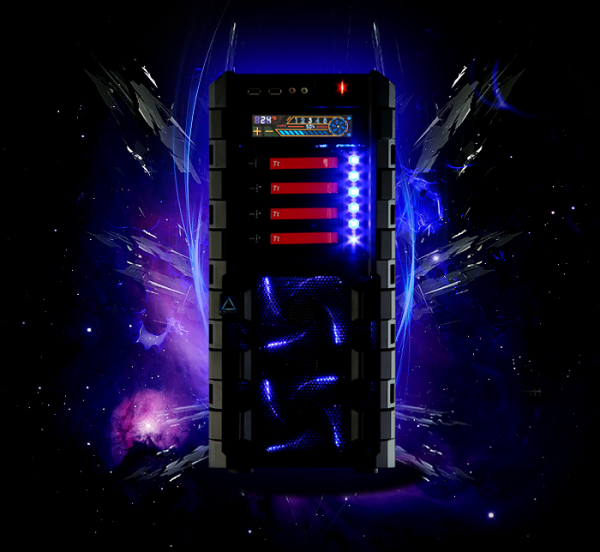

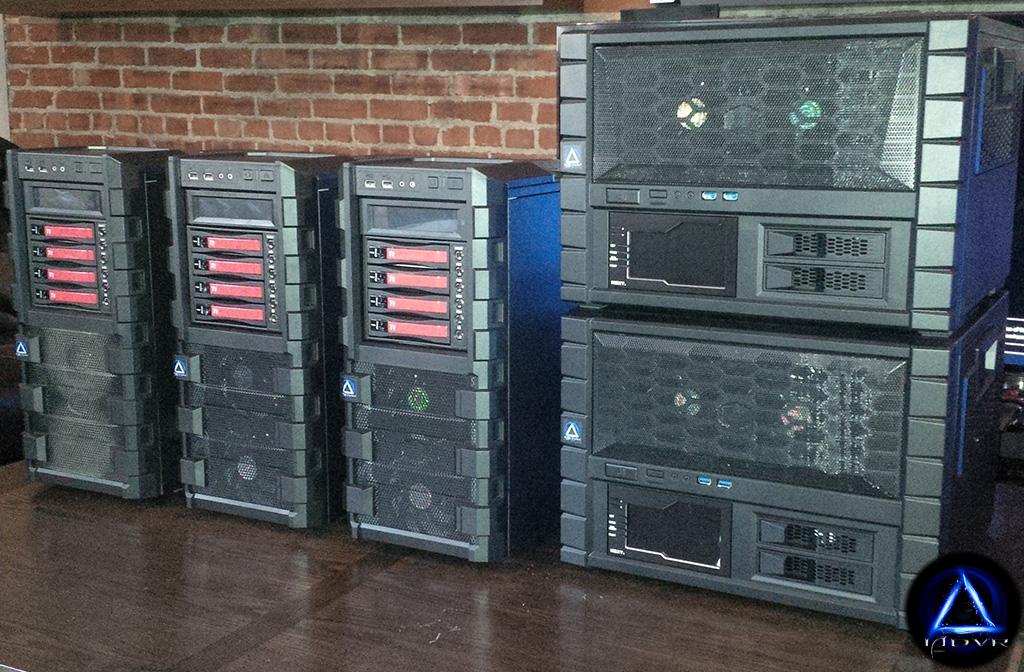

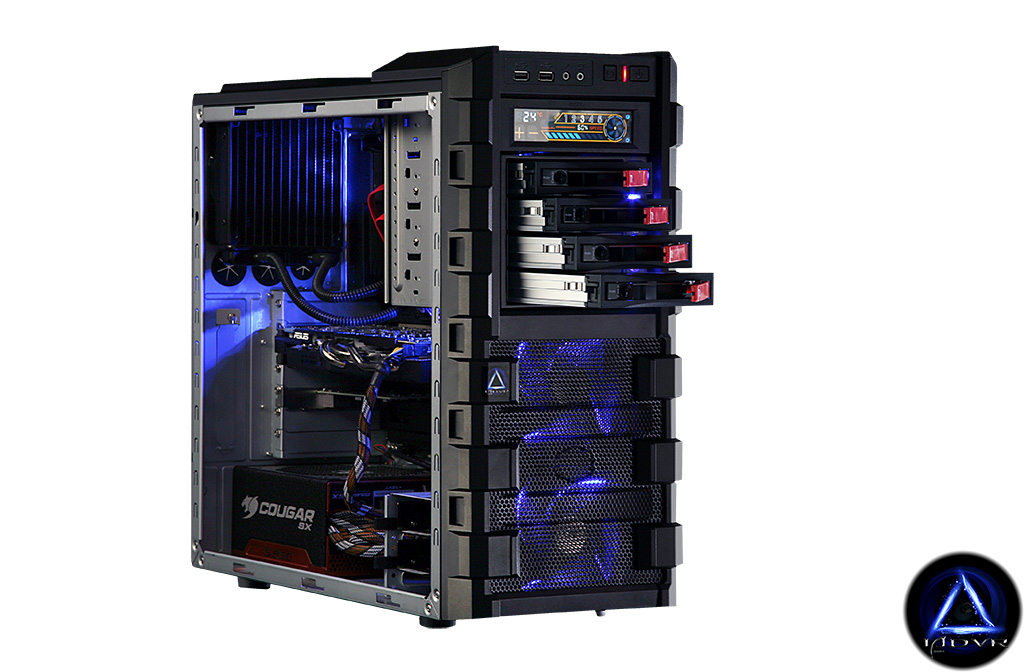

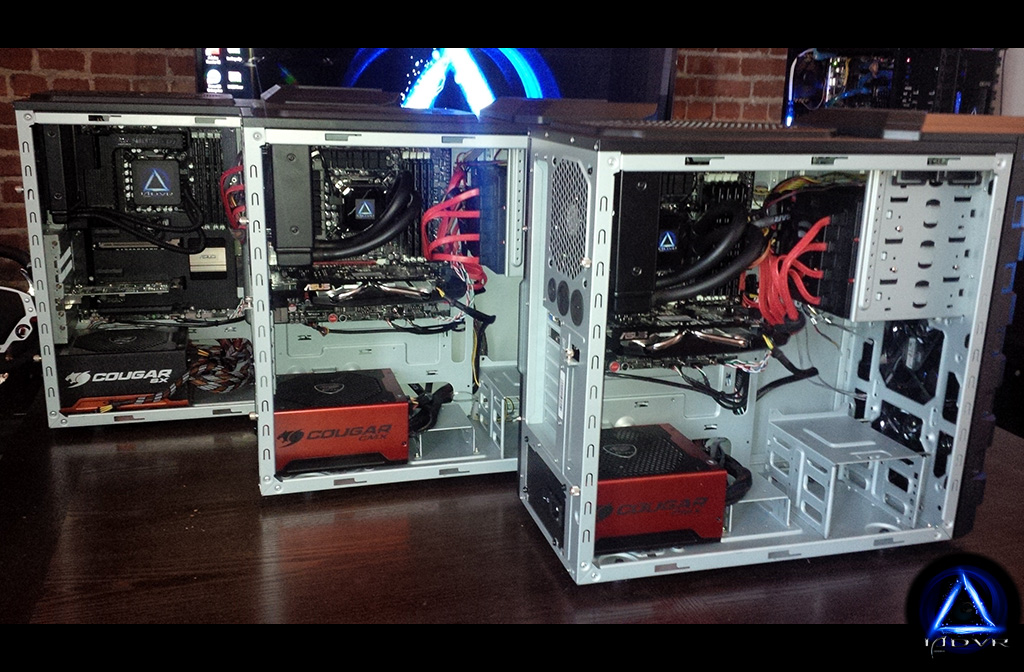

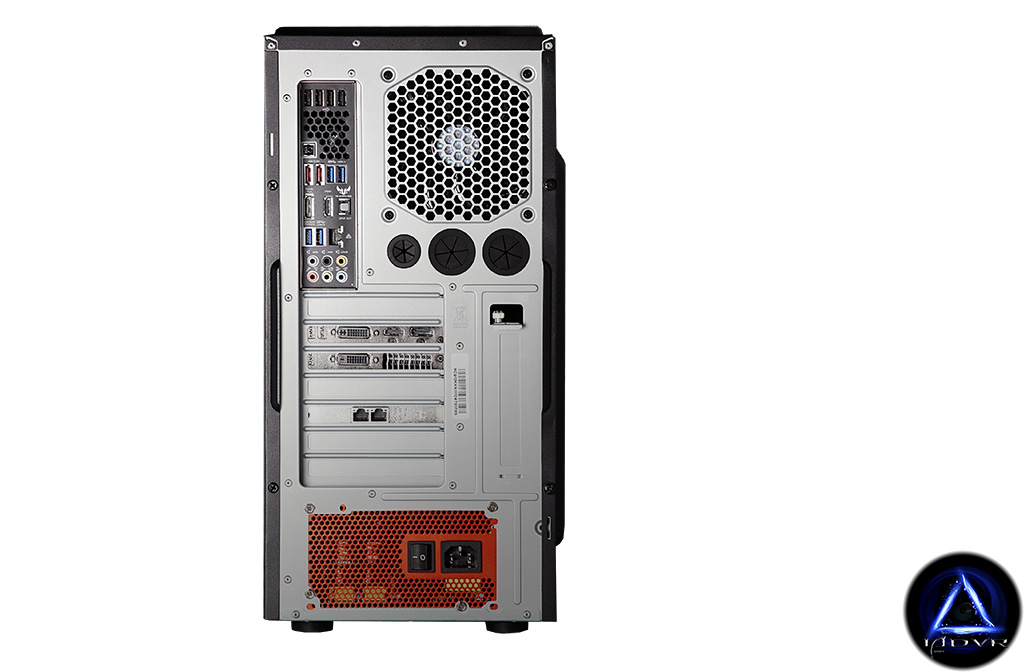

BlackKnight NSD is a High Performance Full Tower Server/Workstation. Its mission is to store, analyse & display video camera signals in real time, night and day, 24/365 full throttle. It unifies Processing Power and DVR/NVR Data Storage for CCTV DVR (Closed Caption TV Digital Video Recorder). Whether it be commercial, research or manufacturing facility, BlackKnight NSD is the critical component of your local Physical & Security Cameras Management Center for midsize to large facilities.

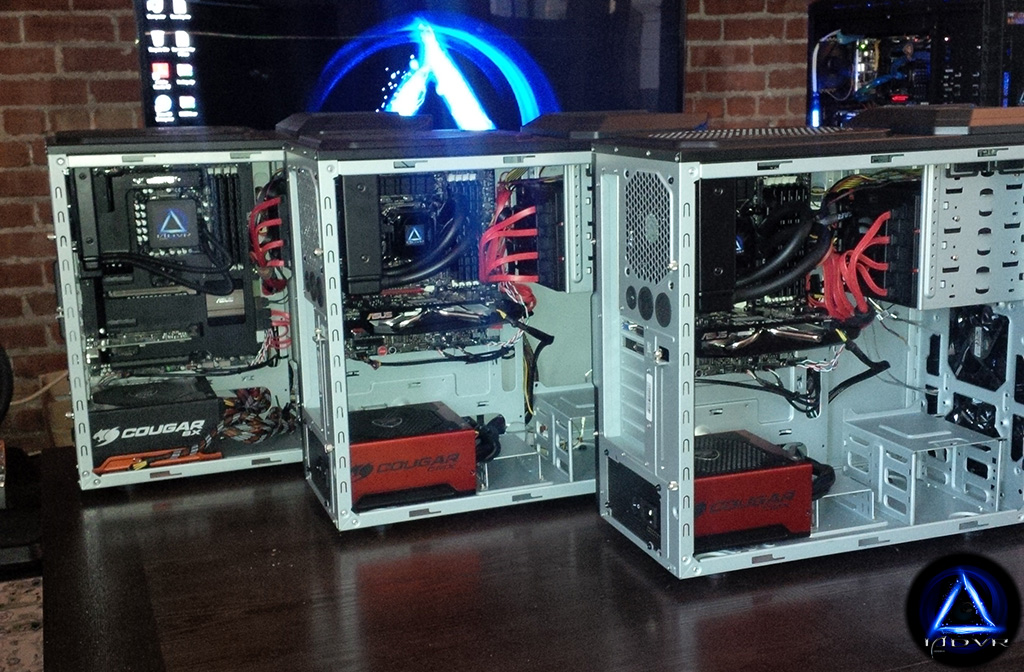

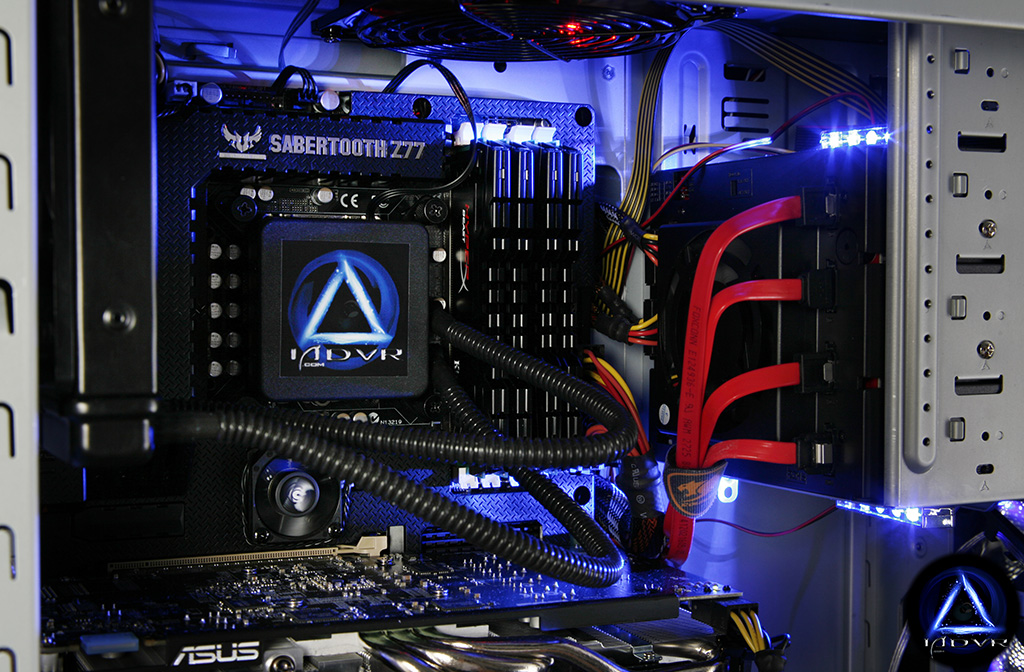

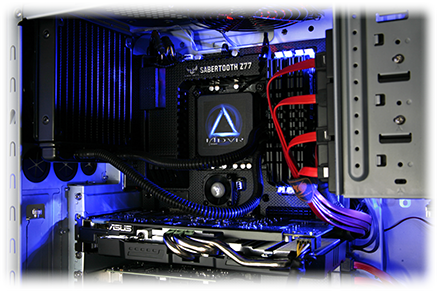

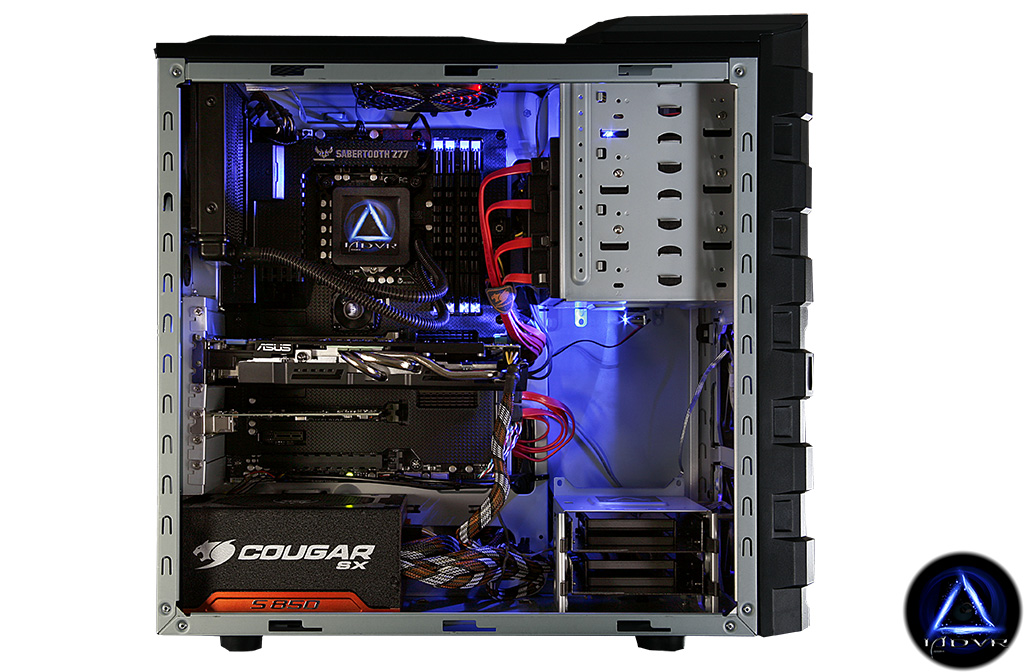

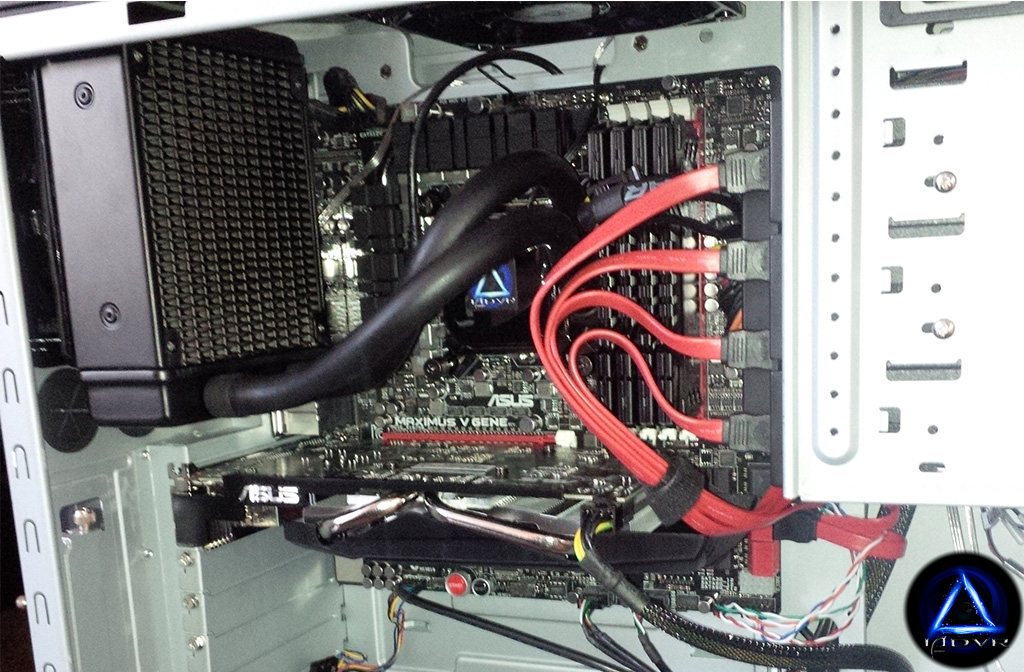

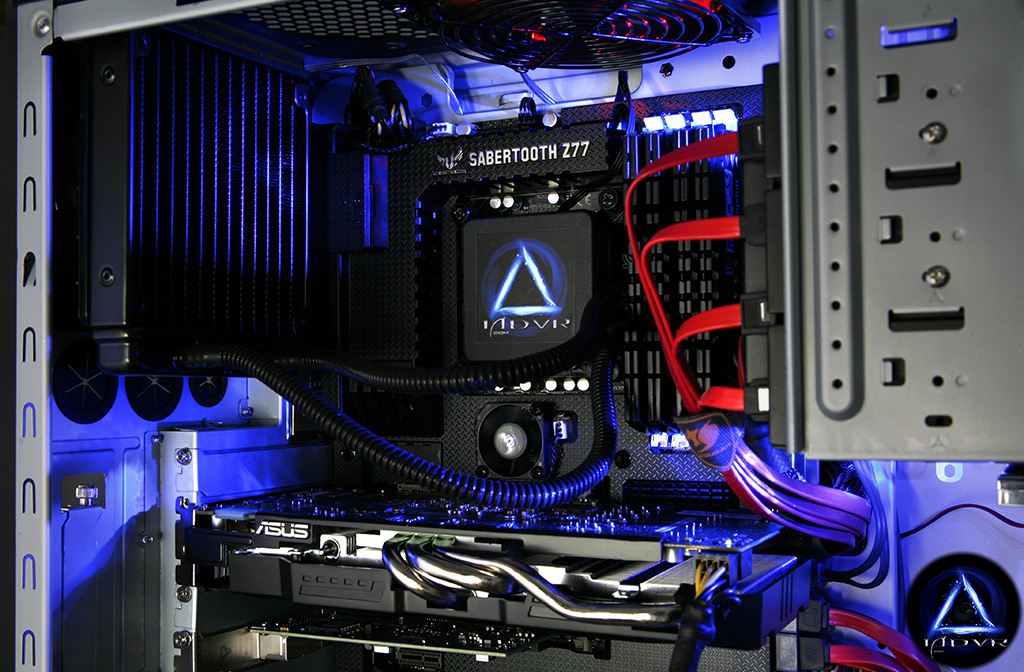

From its thermal evacuation optimized motherboard an video card to its TWO revolutionary and efficient water-cooling system hooked on 2 large radiator and pumping liquid through racing grade hoses model, everything is taught for non-stop high performance storage, processing & display. CPU, GPU and RAM are supercharged to offer extra power when needed most. BlackKnight NSD is your selection of choice to monitor your facilities. Criteria that meet or exceed Defense (Milspecs), CCTV & Physical Security and IT Standards of Quality. Its armored ROG motherboard and TUF system offers Thermal Armor to prevent heat build up, Thermal Radar to indicate that the system remains cool even under pressure and Dust Defender protection to prevent ingress of dust infiltration on connectors and in mobile parts.

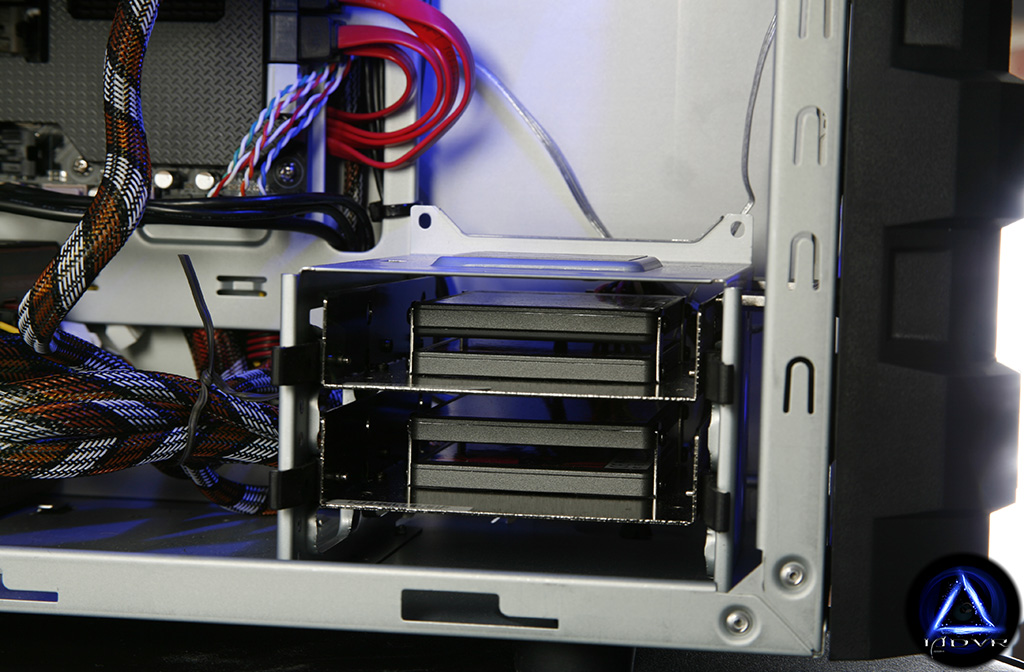

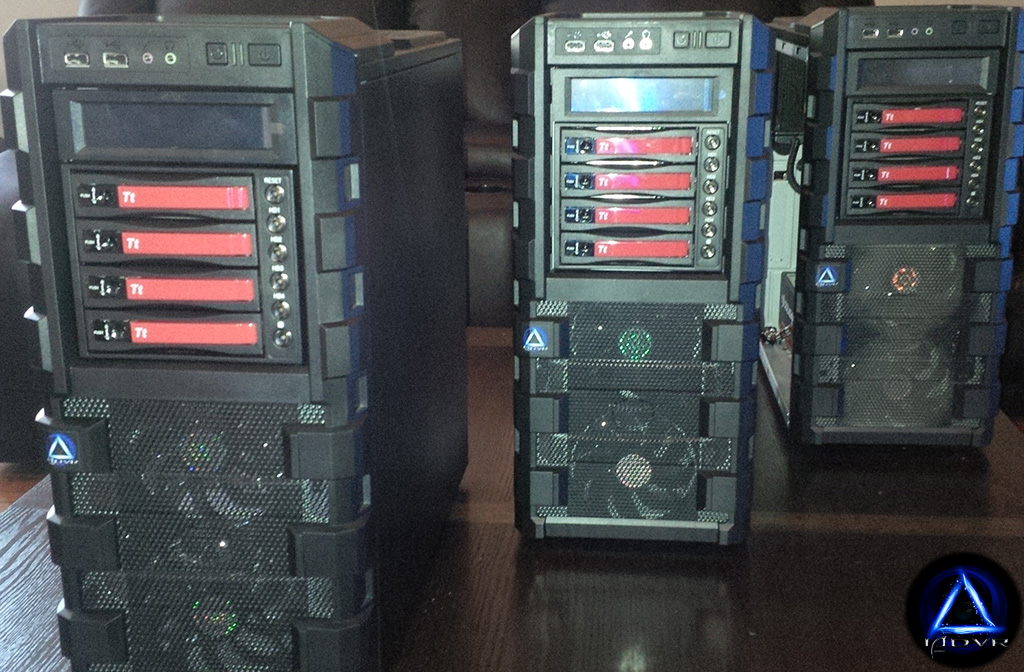

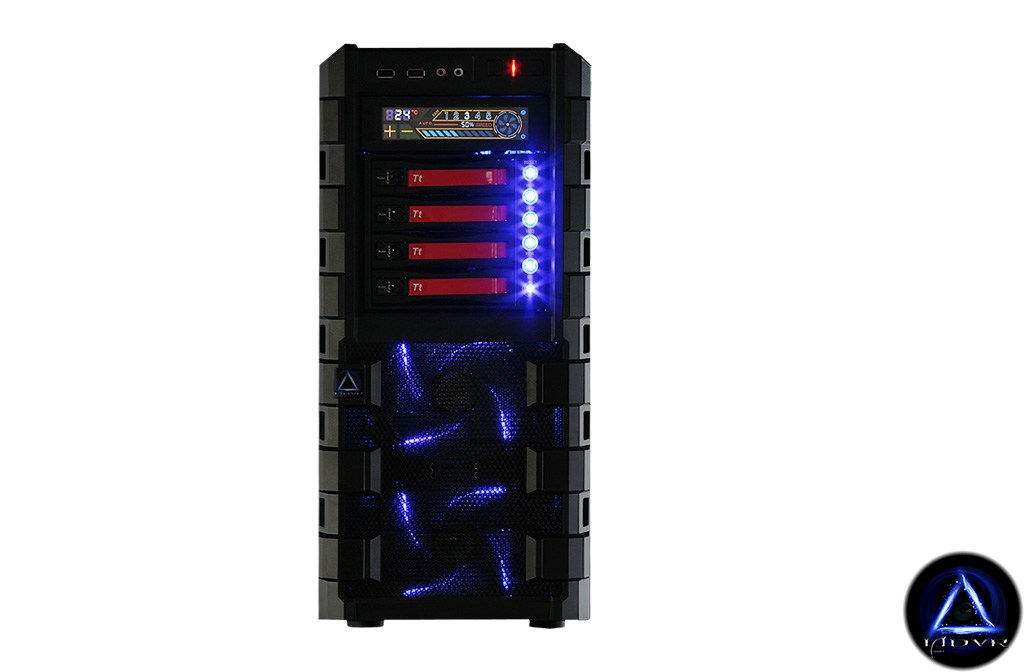

The front Control Panel gives an accurate reading of the CPU Temperature and Fan Speed. Video HDD are accessed from Hard Disk Caddy located on front side panel. Dual SSD drives containing the operating system (OS) and Dual SSD drives containing applications (Programs) are accessible from the left side panel of the unit. A single BlackKnight NSD unit can manage a hybrid infrastructure of 30 to 100 analog and IP cameras. Unit comes standard with a SCSI controller allowing RAID 0, 1, 3 and 5 execution.
Its high performance 2 Gb video card offers the capacity to process and feed in real time a host of manipulations, analysis and treatments offered by EagleTarget’s set of applications, including Facial Capture & Recognition, Licence Plate Capture & Recognition, Motion Detection & Multi-Zone protection, etc. BlackKnight NSD unit offers more power than most server-type units (NVR, DVR & Video Server) used in the video surveillance industry for a fraction of the price and footprint.
CTIAI exclusive innovation

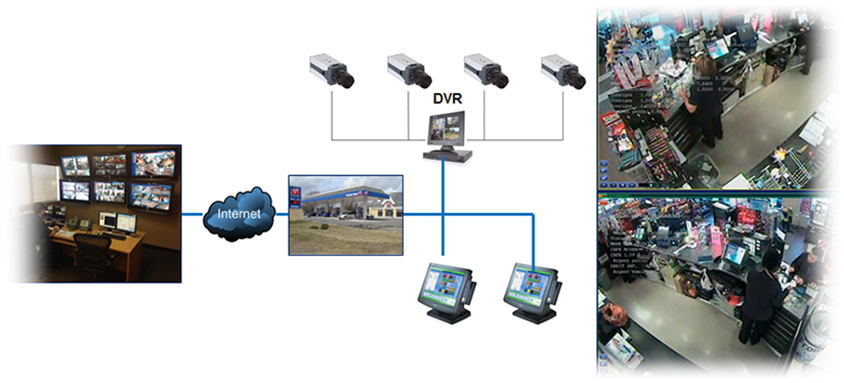

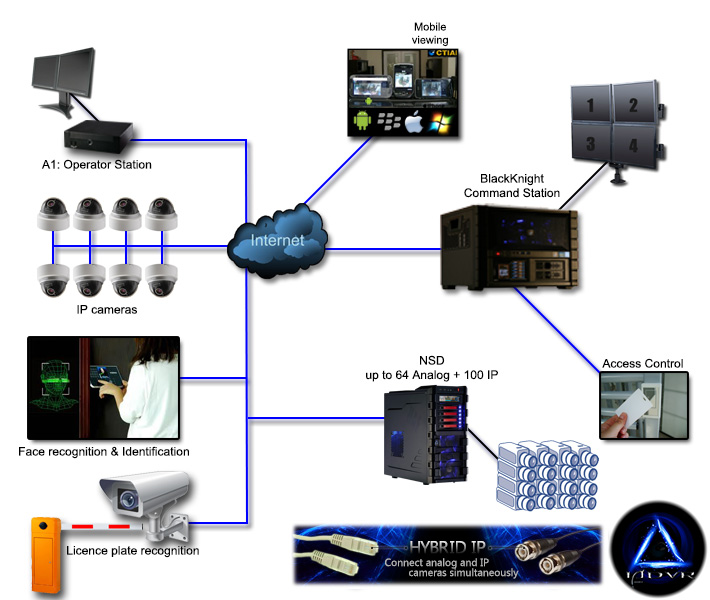

All-in-1 security intelligent security system (DVR)
Total of 150 combined Hybrid CCTV security cameras: Support up to 100 IP + 64 analog for a total of 150 in Hybrid modeSupport simultaneously up to 3000fps IP and up to 960 fps analog in Hybrid Turbo mode * Specifications based on: 2MP quality @ 1080 HD resolution @ 30fps image @ 1mbps network bit rate Up to 16 channels: Face recognition and/or Licence plate capture Motion detection & multi-zone + More info
|
|
+ More info
|
 |

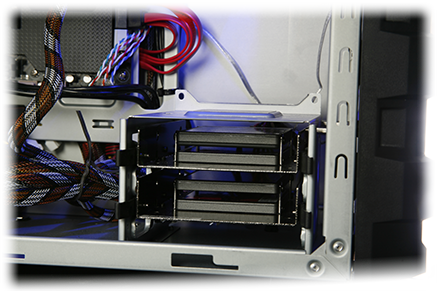

Easy Video Drive access
+ More info
|
|
Redundant SSD 3Gb/s for OS/System Redundant SSD 3Gb/s for Facial & licence plate Recognition DataBase
at speeds of 600Mb/s permitting fetching time in less than 1 second for databses with more than +100 000 faces + More info
|
|
|
King Graphics:
|
 |
+ More info
|
|---|
|

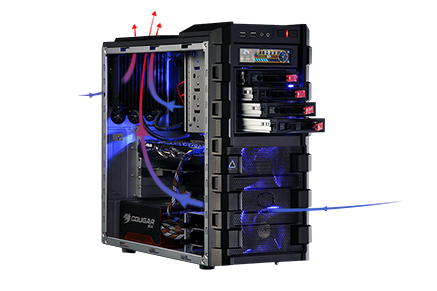

Water meets Electronics: With a water cooled system, the heat is moved through the coolant rather than been blown around the case by a fan + More info
|
|---|
|
|
|
The Ultimate Fore: All TUF Series motherboards pass a rigorous testing program during development, undergoing extreme temperature and humidity trials. These tests result in completely reliable motherboards that are ready for intense daily computing and heavy duty usage with the utmost stability. + More info
|
|
Thermal Armor New Thermal Armor, with its military-styled design, covers the entire motherboard, using dual turbo fans to provide boosted airflow for rapid cool down. The I/O cover fan draws cold air in for extra stability where it counts, helping conduct heat away with the smart shunt design. Newly added custom PCB convection holes provide underside circulation for even greater heat mitigation, denying temperatures room to build up |
Dust Defender TUF design protects slots and connectors from common dust and particles that degrade system performance over time if left unchecked. A simple but effective concept, the shields minimize dust build up to extend slot and component lifespan while promoting optimized performance. |
Thermal Radar Multiple sensors provide temperature readings with auto fan speed adjustments. The new function, Fan Overtime ,keeps fans running after shutdown for extra heat removal. Fan Off disables cooling if temperatures are low, reducing power consumption. |
||
 |
 |
 |
|

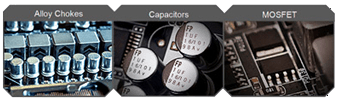

TUF Components (Chole, Cap. & MOSFET; Certified by Military-standards) |
|
|
Certified for Tough Duty
Get rugged performance even in the most challenging conditions with robust TUF chokes, solid capacitors, and MOSFETs--certified through third-party, military-grade testing. TUF Chokes, also known as the “Alloy Choke”, is a made of a compound of various types of metal instead standard iron, enables the support of up to a massive 40A of rated current, 25% higher than conventional component. Furthermore, the single piece packing also eliminates the emission of vibration noise, delivering superb characteristics as well as durability under extreme conditions. |
|
|
+ More info
|
+ More info
|
 |

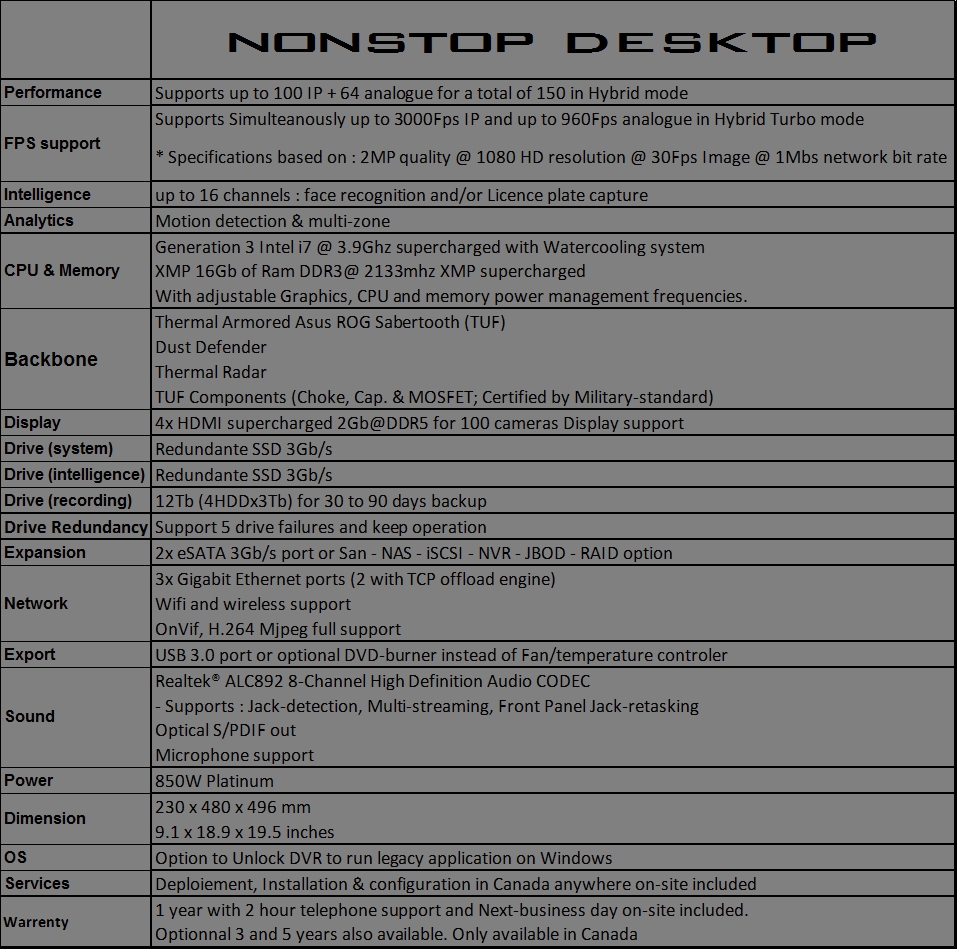

Non Stop Desktop specifications
Click for complete supported hardware list.
|

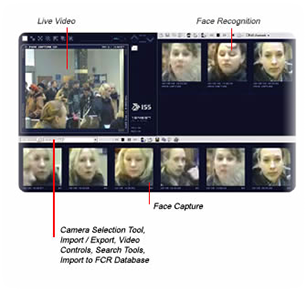

Intelligent Functions Facial Capture & Recognition (FCR) A facial recognition system is a computer application for automatically identifying or verifying a person from a digital image or a video frame from a video source. One of the ways to do this is by comparing selected facial features from the image and a facial database. The system can stand alone for surveillance purposes or be integrated into access control or other third party systems to enhance functionality. Face recognition has 95% accuracy in varying conditions and as such, is ranked amongst the highest of all Face Recognition systems. |
|
|
Functionalities of the module (or system):
|
|

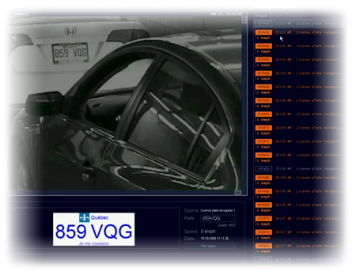

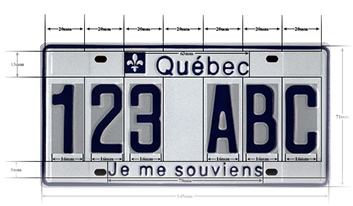

License Place Recognition (LPR) Licence plate recognition is an Intelligent Video Analytics Module and provides License Plate Recognition and comparative analysis of face plates for various types of vehicles. License Plate Recognition is a provides recognition of cars plate numbers, reliably working in the wide range of external conditions, and is easily integrated into legacy security equipment, executive devices and external databases. License Plate Recognition is an effective tool for the solution of registration tasks, identification and provision for car safety, control of traffic, and access control of vehicles. |
|
Functionalities of the Car License Plate Recognition module:
|
|
|

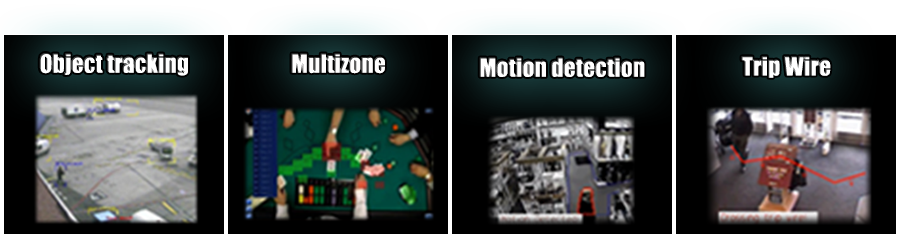

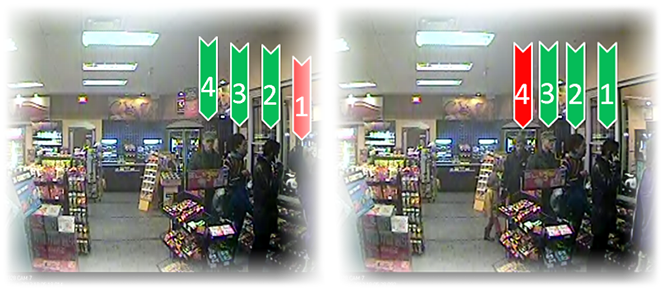

Advanced analytics is the capability of automatically analyzing video to detect and determine temporal events not based on a single image. The algorithms can be implemented as software on general purpose machines, or as hardware in specialized video processing units. deo Motion Detection is one of the simpler forms where motion is detected with regard to a fixed background scene. More advanced functionalities include video tracking . Based on the internal representation that VCA generates in the machine, it is possible to build other functionalities, such Is identification, behavior analysis or other forms of situation awareness. VCA relies on good input video, so it is often combined with video enhancement technologies such as video denoising, image stabilization, unsharp masking and super-resolution. |
|
|
| Functions | Description |
| Dynamic Masking | Blocking a part of the video signal based on the signal itself, for example because or privacy concerns. |
| Motion Detection | Motion detection is used to determine the presence of relevant motions in the observed scene. |
| Object Detection | Object detection is used to determine the presence of a type of object or entity, for example a persor or a car. Other examples include fire and smoke detection. |
| Recognition | Face recognition and Automatic Number Place Recognition are used to recognize, and therefore possibly identify persons or cars. |
| Tamper Detection | Tamper detection is used to determine whether the camera or output signal is tampered with. |
| Video Tracking | Video tracking is used to determine the location of persons or objects in the video signal, possibly with regards to an external reference grid. |
| Table NSD | ||||||
|
