• 6.54" W x 6.18" L x 1.89" H
  • 15,8 x 156,9 x 48mm

When size matters, built for 24/7 operation: The smallest dimension of video security Display Matrix

  • Virtual Matrix supports more than 30 simultaneous 2MP@1080p Hybrid cameras in full display
  • Ruggedized: specifically designed to operate reliably in harsh usage environments and conditions
  • Fully built for mobile application
  • Dual HDMI simultaneous video output
  • DVD Burner for video Export, Digital Signature & Watermark
  • Single SSD hard drive for OS/System
  • Wireless & Bluetooth integrated
Click to view full image

VIDEO MANAGEMENT

  • Analog / IP / Hybrid Camera Capability
  • CIF 1/2/4, VGA, Megapixel Support
  • Intelligent PTZ Capability
  • Support Hierarchical Redundant Architecture
  • Infinitely Scalable
  • Pre and Post Alarm Recording
  • Watermark on Video
  • Simultaneous View, Record & Playback
  • Enhanced Digital Features
  • Adjustable Video Compression
  • Addressable Multi-Zone Motion Detection
  • Multi Layer Smart Mapping
  • Wireless PDA Capability
  • Smart Search Capabilities
  • "Virtual Fence" Management
  • Remote and/or Redundant Storage
  • Multicast Capability
  • Virtual Monitor / Matrix

DEVICE MANAGEMENT

  • Open object oriented architecture
  • Audio integration & synchronization
  • Sensor / Relay Integration
  • Integrate legacy and third party systems
  • Integration Development Kit (IDK) available
  • Exportable event logs

SMART SEARCH CAPABILITIES

  • Visual timeline of recorded events on all channels
  • Search by motion, event, time, or optionally, face(s) and/or number plate captured
  • Simple to use digital controls for search and playback
  • Export video as AVI and snapshots of video as JPEG
  • Automatically burn recordings to CDRW or DVDRW for permanent storage and ease of transfer
  • Video Bookmarking
  • Multiple Camera Search
  • Motion Zone Search of Archive

EVENT / REACTION MANAGEMENT

  • Scripting - program complex events, reactions and scenarios
  • Variable rule(s) based reaction engine
  • Macro reaction programming
  • Alarm by phone, SMS, email or voice notification
  • Scalable architecture for "on demand" upgrades

COMPREHENSIVE VIDEO ANALYTICS SUITE

  • Face Capture
  • Face Recognition
  • License Plate Recognition
  • Container Recognition
  • Transit Carriage Recognition
  • Traffic Monitoring
  • POS w/ Shrinkage Detection
  • Intrusion & Perimeter Analytics
  • Unattended Object Detection
  • Object Tracking

ADVANCED CONFIGURATION
/ SYSTEM MANAGEMENT

  • Centralization of Management
  • Time Schedule Engine
  • Remote Client Access & Admin
  • XML based Web Environment
  • Advanced IT Architecture
  • Integrates with Microsoft Active Directory
  • System can run as Windows service
  • Advanced User Rights Management
  • Central Station Capability
  • Unlimited Operators / Admins with Multiple Permission Sets
  • Ease of Use Utilities such as Media Player and Backup Utility
  • Network, Camera, and Device Status Annunciation

INDUSTRY BEST EXTENSIBILITY

  • Customizable GUI with user defined screens
  • Customizable HTML based user forms
  • Bandwidth Throttling per user or camera
  • Hierarchical Server Management (Video Management Servers, Indexing Servers, NVRs, Storage Servers, Client Workstations)
EagleTarget is a ranking and prioritization intelligent software which lets you do many things:

Eagle Target

  1. Ranking & prioritization of all your alarms comming from all different systems
  2. Permits integration of different solutions into a central software with your VMS
  3. Permits the integration of intelligent functions into any VMS
  4. Permits the integration of any Analytics into any VMS
  5. Permits the central management of different VMS or DVR's into one consolidated system
  6. Middleware for 3D electronic maps integration with different VMS or DVR
  7. Permits the integration or 3rd-partie solutions into EagleTarget Analytics (brain)

Video surveillance

IADVR security systems pass a rigorous testing program during development, undergoing extreme performance benchmarks. These tests result in completely reliable systems that are ready for intense daily computing and heavy duty usage with the utmost stability.
All surveillance system run on Windows or Linux and fully support:
  1. Intelligent Security Systems
  2. Genetec
  3. Milestone
* Please contact us for more or possible other supported VMS platforms or DVR
* Visit manufacturer site for technical specifications

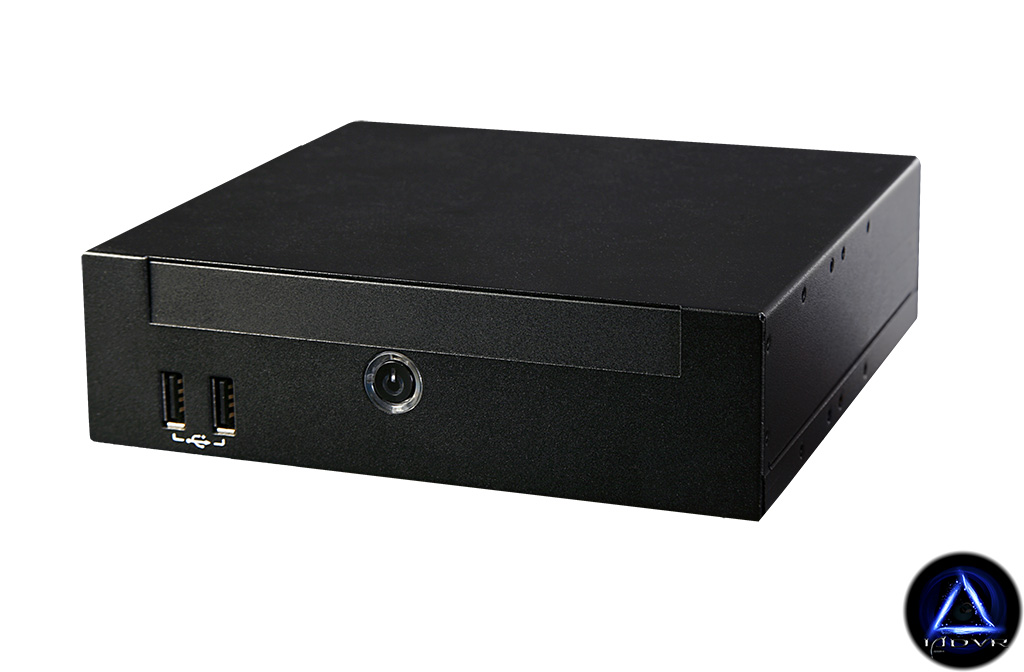

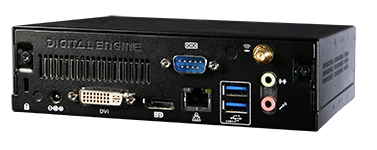

Archangel A1

Archangel A1 is a maintenance free operator or remote client station for VMS (Video Management System) in a Mini size, making it king in Robustness and Resilience. We examined every aspect of a common VMS unit, identified the flaws and weakness of it and managed to eliminate them. We provide a product of a unique ruggedness to free up your working space while liberating your mind from the burden of regular technical repair calls. We install it, you run it and forget about it. It run's very silent, considering it has no mechanical parts.

The unit is barely larger than a CD/DVD disk and is equipped with a DVD burner to facilitate extraction of critical video data. Its aluminum alloyed housing is used to protect the inner components from impacts while dissipating heat. Since there is no fan in the unit, no dust is sucked in, keeping its circuits free from jeopardizing foreign elements.

It can sit on or under a desk without being affected by its environment, nor cluttering up your working space or bothering your operators with heat production. It comes with universal VESA mounts for easy placement or mounting. Its PSU is external to facilitate its replacement in case of failure. Operating system sits on a Solid State Drive, containing no moving parts, producing less heat, operating faster and lasting longer than regular drives.

CTIAI exclusive innovation

UnlockSystem Office Windows
+ More info

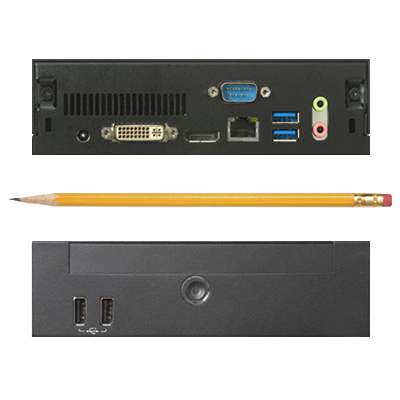

Small Footprint
6.5" x 6.2" x 1.9"

When David meets Goliath

  1. Security DVR: Genetec, Milestone & ISS
  2. Intelligence: Face & Licence place recognition
  3. Analytics: MultiZone & Object tracking
  4. EagleTarget for Indexing & Ranking
  5. 3D real-time E-Maps

+ More info

Fanless Design

Stealth meaning as quite when ON as OFF! Heavy Duty for Industrial use without any mechanical parts. A rugged (or ruggedized, but also ruggedised) computer is a computer specifically designed to operate reliably in harsh usage environments and conditions, such as strong vibrations, extreme temperatures and wet or dusty conditions.

  • Quiet, no noise from fan
  • Prevent fan failure in dusty environement
  • Maintenance free, no need to clean the unit
  • Convection cooling using the whole chasis surface as a heatsink

+ More info

Industrial Grade built for 24/7 high performance

Low power Consumption

Up to 49oC Operations

Less than 7" wide, one of the smallest Mini PCs available



+ More info
Unit capable of being mounted in Mobile unit or application

+ More info

King Graphics:

  1. Virtual Matrix supports more than 30 simultaneous 1080p Hybrid cameras in full display
  2. Dual HDMI simultaneous video output
+ More info

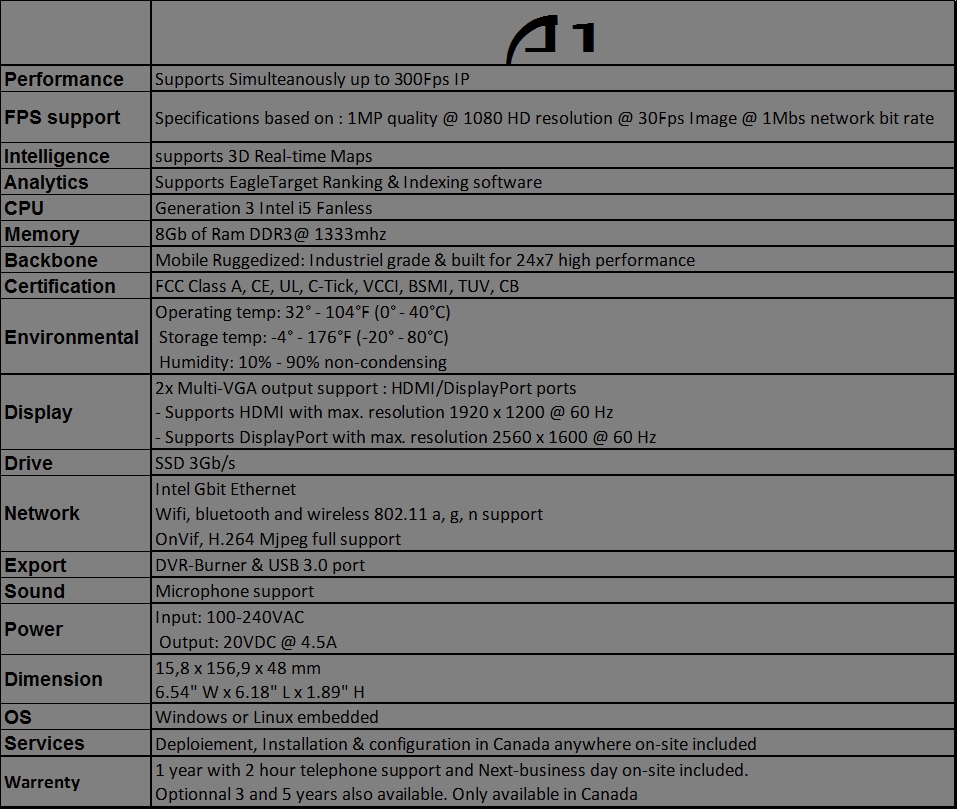

Archangel A1 specifications

Click for complete supported hardware list.




3D Real-Time Electronic maps

3D Orion is a software developed to provide a simple and consistent interface to exploit the potential of all types of devices and thus get rid of a specific site or manufacturer. While the user is accustoming with an intuitive ergonomics, 3D Orion plays an oversight role in keeping track of all actions and ensuring that the user has permission to make certain operations.

A new "Machine to men" Interface

We know that learning to use a software is an expensive operation. That is why 3D Orion benefits from our experience in terms of simplicity and accessibility. "Orion 3D" shows the operated site as a plan in 3 dimensions across which are positioned controlled devices. When possible, Orion 3D can also display one or more video cameras coming from the site or from a recorder. In this case, the devices can also be controlled by thanks to your mouse directly in the video window.
S50
M150
T80
JDVR
BK
NSR
NSD
A1
A4
A16
Software
All

Click for legend
Table A1
ID CTIAI Part Number Qty Cams Description Storage Size Quote
